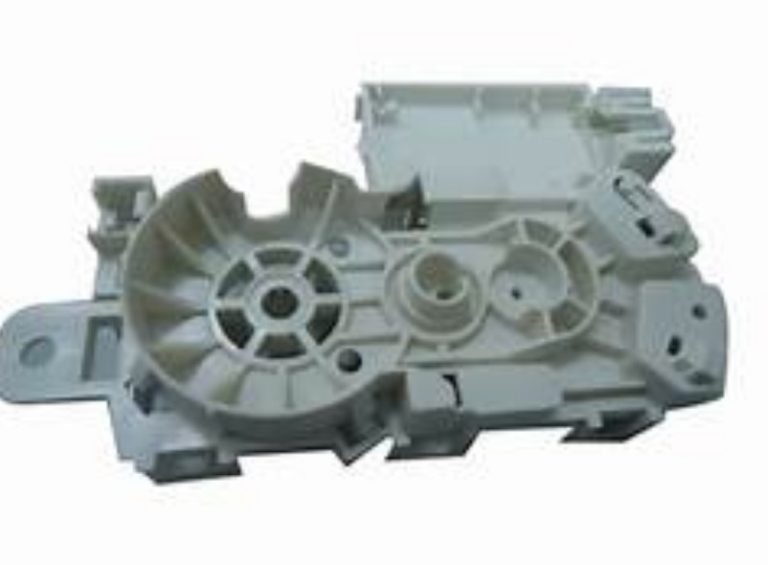

Introduction
Injection molding is a precise manufacturing process. But even with the best equipment and materials, problems occur. Parts warp. Cavities don’t fill completely. Flash appears along parting lines. Surface defects ruin appearance.
Troubleshooting these issues requires understanding their causes. A temperature difference of more than 10°C between mold sides increases warpage likelihood by 30% . A pressure drop exceeding 20% during injection can cause short shots. Clamping force must match projected area—a medium-sized mold may need 50 to 80 tons .
This guide covers common injection molding problems—warpage, short shots, flash, surface defects—and provides practical troubleshooting solutions.
What Are the Basic Steps of Injection Molding?
Step 1: Raw Material Preparation
Plastic pellets are selected based on product requirements—mechanical properties, heat resistance, chemical resistance. ABS is used for strength and impact resistance in automotive interiors and electronics housings. Pellets are loaded into the machine hopper.
Step 2: Heating and Melting
Inside the barrel, a screw rotates, pushing pellets forward. Barrel temperature varies by material:
- Polyethylene (PE): 120°C – 180°C
- Polycarbonate (PC): 250°C – 320°C
Step 3: Injection
Molten plastic is forced under high pressure into the closed mold cavity. Injection pressure: 50 to 200 MPa , depending on mold complexity, part size, and material.
Step 4: Cooling and Solidification
Cooling channels circulate water or other media. Cooling time varies:
- Small, thin-walled toy: 10 – 20 seconds
- Large automotive bumper: several minutes
Step 5: Mold Opening and Part Ejection
The mold opens. Ejection pins push the finished part out. Flash or other minor imperfections may remain.
Step 6: Post-Processing
Flash is trimmed. Parts may be deburred, sanded, painted, or assembled.
What Are Common Problems and Their Causes?
Part Warpage
Warpage is when the part deviates from its intended shape—curved or twisted. It does not lie flat.
Causes:
| Cause | Explanation |
|---|---|
| Uneven mold cooling | Cooling channels not evenly distributed or blocked. Temperature difference >10°C between mold sides increases warpage likelihood by 30%. |
| Improper packing pressure | Uneven pressure distribution causes uneven compression and shrinkage. |
| Different shrinkage rates | Fiber-reinforced plastics shrink more in the direction parallel to fiber alignment. |
Short Shots
Short shots occur when molten plastic does not completely fill the mold cavity. The part is incomplete.
Causes:
| Cause | Explanation |
|---|---|
| Insufficient injection pressure | Pressure drop >20% during injection leads to incomplete filling. Small intricate molds may need 100–150 MPa; larger molds up to 200 MPa. |
| Poor plastic flowability | Low temperature, high viscosity, or contaminants impede flow. Undried material has higher viscosity. |
| Inadequate mold venting | Trapped air creates a barrier. Vents should be 3–5 mm wide, 0.02–0.03 mm deep. |
Flash
Flash is thin, excess plastic seeping out along parting lines, ejector pin holes, or other openings.
Causes:
| Cause | Explanation |
|---|---|
| Insufficient clamping force | Injection pressure pushes mold halves apart. For a 0.05 m² mold, at least 50–80 tons clamping force required. |
| Excessive mold clearance | Gaps >0.05 mm between mold components allow plastic escape. |
| Over-injection | Incorrect injection volume or system malfunction causes over-filling. |
Surface Defects
| Defect | Cause |
|---|---|
| Silver streaks | Moisture in plastic. Hygroscopic plastics like nylon need drying to <0.1% moisture. |
| Air bubbles | Trapped air from improper venting or injection too fast; or decomposition at high temperatures. |
| Flow marks | Non-uniform flow; injection speed too slow causes uneven cooling during flow. |
How to Troubleshoot by Adjusting Process Parameters?
Injection Pressure and Speed
Short shots: Increase injection pressure. If 80 MPa is insufficient, try 100–120 MPa. Too high causes flash or excessive stress.
Injection speed: Faster speed fills cavity before premature cooling. Too fast entrains air, causing bubbles.
Packing Pressure and Time
Shrinkage or warpage: Increase packing pressure slightly to compensate for volume reduction during solidification.
For a medium-sized part:
- Packing pressure: 30 – 50 MPa
- Packing time: 5 – 10 seconds
Adjust based on part behavior.
Cooling Time
Warpage: Increase cooling time uniformly. Optimize cooling channels.
Cooling time guidelines:
- 2 mm thickness: 15 – 20 seconds
- 5 mm thickness: 30 – 40 seconds
How to Troubleshoot by Optimizing Mold Design?
Gate Location
Gate position affects plastic flow. Improper location causes flow marks, short shots, uneven filling.
| Part Type | Recommended Gate |
|---|---|
| Large, flat parts | Central gate or multiple evenly distributed gates |
| Simple shapes | Side gate |
| Complex shapes | Pin-point gate or submarine gate for precise flow control |
Cooling System Design
Even cooling prevents warpage.
- Cooling channel diameter: 8 – 12 mm
- Distance from cavity: 15 – 20 mm (consistent)
- Hot spots: Add channels or adjust coolant flow rate
Ventilation Structure
Vents allow air to escape.
| Vent Dimension | Value |
|---|---|
| Width | 0.02 – 0.05 mm |
| Depth | 3 – 5 mm |
Too large: plastic leaks out. Too small: air trapped, causing short shots or air bubbles.
How to Troubleshoot Through Material Selection and Handling?
Material Selection
Choose material based on product requirements:
| Requirement | Materials |
|---|---|
| High heat resistance | PEEK (continuous use to 260°C), PPS |
| Cost-effectiveness, general use | PE, PP |
Melt flow index (MFI) affects flowability. Higher MFI = better flow.
Material Drying
Hygroscopic materials—nylon—must be dried before processing. Moisture causes silver streaks and air bubbles.
| Material | Drying Conditions | Target Moisture |
|---|---|---|
| Nylon | 80 – 100°C, 4 – 6 hours | <0.1% |
Use desiccant dryers for effective moisture removal.
How to Troubleshoot Through Equipment Maintenance?
Injection Molding Machine Maintenance
| Component | Maintenance Action |
|---|---|
| Screw | Check wear. Replace if surface roughness increases >0.05–0.1 mm beyond specification. |
| Nozzle | Clean regularly to prevent residue buildup blocking flow. |
| Temperature control | Calibrate regularly for accurate heating. |
Mold Maintenance
| Component | Maintenance Action |
|---|---|
| Moving parts | Lubricate ejector pins, slides regularly for smooth operation. |
| Mold surface | Check for scratches or dents; repair to maintain part surface quality. |
| Alignment | Inspect to ensure proper closing; no gaps causing flash. |
What Does a Real-World Example Look Like?
A manufacturer of automotive interior trim experienced warpage on large, flat panels. The scrap rate was 12%.
Investigation revealed uneven cooling. Cooling channels were not evenly distributed, creating a 12°C temperature difference across the mold. Packing pressure was also inconsistent.
Solutions implemented:
- Cooling channels redesigned with consistent 15 mm distance from cavity
- Additional channels added near hot spots
- Packing pressure increased from 40 MPa to 50 MPa
- Packing time extended from 8 to 12 seconds
The result: warpage reduced by 80%. Scrap rate dropped to 3%. Production efficiency improved as cooling time was optimized.
Conclusion
Injection molding problems have identifiable causes and targeted solutions.
Warpage: Uneven cooling, improper packing, differential shrinkage. Solutions: balance cooling channels, adjust packing pressure, optimize gate location.
Short shots: Low injection pressure, poor flowability, inadequate venting. Solutions: increase pressure, improve material drying, add vents.
Flash: Insufficient clamping force, excessive clearance, over-injection. Solutions: increase clamping force, inspect mold components, correct injection volume.
Surface defects: Moisture, trapped air, non-uniform flow. Solutions: dry materials, improve venting, adjust injection speed.
Process parameter adjustment, mold design optimization, material selection and handling, and equipment maintenance all play roles in effective troubleshooting.
With systematic diagnosis and targeted fixes, injection molding processes can achieve high quality and consistency.
FAQ
What causes warpage in injection molding and how to fix it?
Uneven mold cooling is the primary cause. Temperature difference >10°C between mold sides increases warpage likelihood by 30%. Improper packing pressure and different shrinkage rates (especially in fiber-reinforced plastics) also contribute. Fix by balancing cooling channels, increasing packing pressure uniformly, and optimizing gate location.
How to prevent short shots?
Ensure sufficient injection pressure—small intricate molds may need 100–150 MPa. Improve material flowability by proper heating and drying. Add vents (3–5 mm wide, 0.02–0.03 mm deep) to allow air escape. Check for contaminants that increase viscosity.
What is flash and how to eliminate it?
Flash is excess plastic seeping out along parting lines, ejector pin holes, or other openings. It is caused by insufficient clamping force (0.05 m² mold needs 50–80 tons), excessive mold clearance (gaps >0.05 mm), or over-injection. Solutions: increase clamping force, inspect and repair mold components, correct injection volume settings.
Why do silver streaks appear on molded parts?
Silver streaks are caused by moisture in the plastic. Hygroscopic materials like nylon must be dried to <0.1% moisture. Use desiccant dryers at appropriate temperatures—nylon: 80–100°C for 4–6 hours.
How does gate location affect part quality?
Gate position controls plastic flow. Improper location causes flow marks, short shots, and uneven filling. Large flat parts need central or multiple gates. Complex shapes require pin-point or submarine gates for precise flow control. Simple shapes may work with side gates.
