Introduction

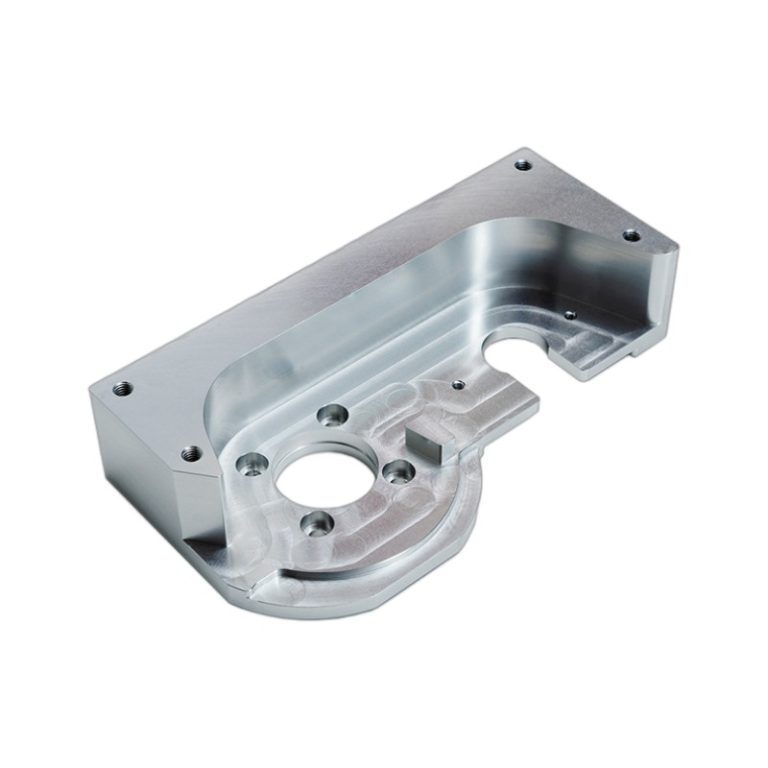

Behind every precisely machined component lies a carefully crafted set of instructions. CNC part programming is the bridge between digital design and physical reality. It translates what engineers envision into the precise movements, speeds, and tool changes that a CNC machine executes.
Getting programming right matters. A well-optimized program produces parts faster, with better surface finish, and longer tool life. A poorly written program wastes time, wears tools prematurely, and risks scrapping expensive materials.
This guide walks you through CNC part programming fundamentals. You will learn how programs are structured, what G-code and M-code do, how to choose tools and plan operations, and what considerations ensure precision and efficiency. Whether you are new to programming or looking to refine your approach, these insights will help you produce better results.
What Is CNC Part Programming?
Defining the Core Process
CNC part programming is the process of creating a detailed set of instructions that tells a CNC machine how to manufacture a part. These instructions, typically written in G-code and M-code, control:
- Machine axis movements
- Spindle speed and direction
- Tool selection and changes
- Coolant flow
- Feed rates
The goal is simple: translate the part’s design specifications into a sequence of actions that the machine can execute accurately and efficiently.
Key principle: A CNC program is not just a list of movements. It is a carefully sequenced plan that considers material behavior, tool capabilities, machine limits, and quality requirements.
A Brief History
CNC programming traces its roots to the 1940s and 1950s, when the first numerically controlled machines used punched tape to store instructions. These early systems were labor-intensive and error-prone. Operators literally punched holes in paper tape to represent machine movements.
The advent of computers transformed the field. CAM (Computer-Aided Manufacturing) software emerged, allowing programmers to generate machine code directly from CAD models. Today, programming is faster, more accurate, and far more sophisticated. Modern software simulates toolpaths, detects collisions, and optimizes cutting strategies before a single chip is cut.
How Does CNC Programming Work?
The Programming Workflow
CNC programming follows a structured sequence. Each step builds on the previous one.
| Step | Activity | Purpose |
|---|---|---|
| 1 | Design specification | Create 3D CAD model defining geometry, tolerances, and material |
| 2 | CAM processing | Convert CAD model into toolpaths and machine code |
| 3 | Tool and material selection | Choose appropriate cutting tools and confirm material properties |
| 4 | Operation sequencing | Determine order of operations—roughing, finishing, drilling, etc. |
| 5 | Post-processing | Generate machine-specific G-code and M-code |
| 6 | Simulation and verification | Test program virtually to detect errors before machining |
| 7 | Machine execution | Load program and run production |
Understanding G-Code and M-Code
These two code types work together to control the machine.
G-code (Geometric code) controls movement and machining operations:
- G00: Rapid positioning (move quickly, not cutting)
- G01: Linear interpolation (straight line cutting)
- G02/G03: Circular interpolation (arc cutting, clockwise/counterclockwise)
- G17/G18/G19: Plane selection (XY, XZ, YZ)
- G90/G91: Absolute or incremental positioning
M-code (Miscellaneous code) controls auxiliary functions:
- M03/M04/M05: Spindle on (clockwise/counterclockwise) and off
- M08/M09: Coolant on and off
- M06: Tool change
- M30: Program end and rewind
Example: A simple program to drill a hole might look like:
N10 G90 G00 X50 Y50 (Move to position)
N20 M03 S2000 (Start spindle at 2000 RPM)
N30 G01 Z-10 F100 (Drill down 10mm at 100 mm/min feed)
N40 G00 Z5 (Retract quickly)
N50 M05 (Stop spindle)
N60 M30 (End program)What Software Is Used for CNC Programming?
Popular CAM Platforms
Several software packages dominate CNC programming. Each has strengths for different applications.
| Software | Best For | Key Features |
|---|---|---|
| Mastercam | General machining, mold making | Powerful toolpath generation; user-friendly; widely used |
| SolidWorks CAM | SolidWorks users | Seamless CAD/CAM integration; knowledge-based machining |
| Fusion 360 | Small to medium shops | Cloud-based; CAD/CAM/CAE integrated; affordable |
| CATIA | Aerospace, automotive | Complex surface machining; advanced simulation; high-end |
| Siemens NX | High-end manufacturing | Integrated design and manufacturing; advanced toolpath control |
Key point: The choice of software matters less than understanding the principles behind it. A skilled programmer can produce quality results with any capable CAM system.
What Are the Key Considerations in CNC Programming?
Material Properties and Machinability
Material selection drives nearly every programming decision. Different materials behave differently under cutting tools.
| Material | Machinability | Programming Implications |
|---|---|---|
| Aluminum (6061, 7075) | High | High cutting speeds (300–600 m/min); sharp tools; good chip evacuation |
| Steel (1018, 4140) | Moderate | Moderate speeds (100–200 m/min); rigid setups; coated tools recommended |
| Stainless steel (304, 316) | Low | Lower speeds (80–120 m/min); high-pressure coolant; positive rake tools |
| Titanium (Ti-6Al-4V) | Very low | Low speeds (40–60 m/min); rigid machines; constant chip load |
| Engineering plastics (PEEK, Acetal) | Moderate | High speeds; sharp tools; air cooling preferred |
Real-world example: A programmer switching from 6061 aluminum to 304 stainless steel must reduce cutting speed by 70–80% and adjust feed rates, coolant strategy, and tool selection. Failing to account for material properties leads to rapid tool wear and poor surface finish.
Tool Selection and Toolpath Optimization
Choosing the right tool is half the programming battle. The other half is planning how it moves.
Tool selection factors:
- Material being cut
- Feature geometry (pockets, contours, holes)
- Required surface finish
- Machine spindle capabilities
- Tool reach and rigidity
Toolpath optimization involves:
- Minimizing air cutting (rapid moves between features)
- Using trochoidal milling for deep slots to reduce tool engagement
- Applying high-speed machining (HSM) techniques with constant chip load
- Reducing retract moves when they are not needed
- Choosing climb milling vs. conventional milling based on material and finish requirements
Data point: Optimized toolpaths can reduce cycle time by 20–40% compared to basic programming. A manufacturer machining complex aluminum housings reduced cycle time from 18 minutes to 12 minutes—a 33% improvement—through toolpath optimization alone.
Tolerances and Precision Requirements
Tolerances determine how tightly a part must conform to design dimensions. Programming must account for:
| Factor | Impact on Programming |
|---|---|
| Machine accuracy | Machine’s positioning repeatability limits achievable tolerances |
| Tool deflection | Long tools bend under cutting forces; program must compensate |
| Thermal expansion | Heat from cutting changes tool and part dimensions |
| Tool wear | Worn tools produce undersized features; program may need offsets |
Industry standards:
- General machining: ±0.05 mm
- Precision machining: ±0.01–0.02 mm
- High-precision (aerospace, medical): ±0.005 mm or tighter
Best practice: Program for the tightest tolerances only where needed. Specifying ±0.01 mm on every dimension dramatically increases cost without adding value. Use GD&T (Geometric Dimensioning and Tolerancing) to control critical relationships while leaving non-critical features with wider tolerances.
Workholding and Fixturing
The program must account for how the part is held. Poor fixturing leads to vibration, tool breakage, and dimensional errors.
Considerations:
- Access: Program must avoid cutting into clamps or fixtures
- Rigidity: Fixture must withstand cutting forces without deflection
- Repeatability: For multiple parts, fixturing must locate parts consistently
- Deformation: Thin-walled parts may distort under clamping; program may need multiple setups
Example: A thin-wall aluminum housing required light clamping to prevent distortion. The programmer added a finishing pass with reduced radial engagement after the part was unclamped and re-clamped with minimal pressure.
Coolant and Chip Management
Chips must go somewhere. Programs should plan for chip evacuation, especially in deep cavities or slotting operations.
Coolant strategies:
- Flood coolant: General purpose; good for heat control
- Through-spindle coolant: Reaches cutting zone in deep holes or cavities
- Minimum quantity lubrication (MQL): For aluminum and some plastics; reduces cleanup
- Air blast: For plastics and dry machining applications
Programming considerations:
- Turn coolant on before cutting starts (M08)
- Use peck drilling cycles for deep holes to break chips
- Consider toolpaths that avoid chip recutting
What Programming Techniques Are Used?
Manual vs. Computer-Aided Programming
| Technique | When Used | Advantages | Disadvantages |
|---|---|---|---|
| Manual programming | Simple parts, simple machines, quick edits | No software required; full control | Time-consuming; error-prone; limited to simple geometry |
| Computer-aided programming | Most production work | Fast; accurate; handles complex geometry; simulation capability | Requires software investment; learning curve |
Reality: Manual programming still has a place for simple parts, machine edits, and understanding fundamentals. But for production work, computer-aided programming is the standard.
2D vs. 3D Programming
2D programming:
- Used for flat parts, profiles, pockets, holes
- Toolpaths are defined in two dimensions with depth as a parameter
- Simpler, faster to generate
3D programming:
- Required for complex surfaces, contours, and organic shapes
- Toolpaths follow surface geometry in all three axes
- More computationally intensive; requires advanced CAM
Example: A mold cavity with curved surfaces requires 3D programming with ball end mills and stepover control to achieve required surface finish.
Adaptive and High-Speed Machining Strategies
Modern CAM software offers advanced strategies that improve efficiency:
| Strategy | Description | Benefit |
|---|---|---|
| Adaptive clearing | Constant radial engagement; variable stepover | Maintains constant tool load; extends tool life |
| Trochoidal milling | Circular toolpath for slotting | Reduces radial engagement; enables deeper cuts |
| Peeling | Step-down along contour | Efficient for deep cavities |
| Rest machining | Targets remaining material after roughing | Reduces air cutting; faster finishing |
Where Is CNC Programming Applied?
Aerospace and Automotive
These industries demand high precision and reliability. CNC programming produces:
- Engine components (turbine blades, pistons)
- Structural parts (airframe brackets, chassis components)
- Transmission gears and housings
Critical requirements: Tight tolerances, material traceability, and process documentation.
Medical Devices
Medical manufacturing requires precision and cleanliness. CNC programming enables:
- Orthopedic implants (hips, knees)
- Surgical instruments
- Custom patient-specific devices
Critical requirements: Biocompatible materials, surface finishes below Ra 0.4 μm, and cleanroom compatibility.
Custom Machining and Prototyping
For low-volume and prototype work, CNC programming offers flexibility:
- Rapid design iterations
- No tooling investment
- Complex geometries feasible
Example: A startup developing a new medical device can program CNC machines to produce 10–20 prototypes for testing, then refine the design and produce another batch—all without mold or tooling costs.
What Does the Future Hold?
Automation and AI Integration
Artificial intelligence is entering CNC programming. AI algorithms can:
- Optimize toolpaths automatically based on past results
- Predict tool wear and adjust parameters
- Detect potential collisions before they occur
Data point: Early adopters report 15–25% cycle time reductions using AI-optimized toolpaths compared to traditional CAM strategies.
Smart Manufacturing Integration
CNC programming is becoming part of broader Industry 4.0 systems:
- Programs feed into digital twins for full process simulation
- Machine data feeds back to optimize future programs
- Real-time monitoring adjusts parameters based on tool wear
Cloud-Based and Collaborative Programming
Cloud platforms enable:
- Remote programming and simulation
- Collaboration between design and manufacturing teams
- Centralized tool libraries and post-processors
Yigu Technology’s Perspective
At Yigu Technology, we view CNC programming as the critical link between design intent and manufactured reality. Our programmers combine deep CAM software expertise with hands-on machining experience.
Our approach:
- Start with a thorough review of design tolerances and critical features
- Select tools based on material, geometry, and required finish
- Optimize toolpaths to balance cycle time and tool life
- Simulate programs to verify clearance and detect collisions
- Use in-process inspection to validate results and refine programs
Recent example: A client needed 500 precision brackets in 17-4 PH stainless steel with ±0.01 mm tolerances on mounting surfaces. Our programmers developed a strategy using adaptive roughing followed by finishing passes with reduced stepover. Cycle time was 8 minutes per part. Tool life averaged 120 parts per end mill. The client received all parts within tolerance, with no rejects.
We believe good programming is invisible. It produces parts that meet specifications, runs efficiently, and avoids surprises. Bad programming creates problems that ripple through production. Our job is to make sure you get the first kind.
Conclusion
CNC part programming is the foundation of modern precision manufacturing. It translates design into action, controlling every movement, speed, and tool change that shapes a part.
Successful programming requires understanding materials, selecting appropriate tools, optimizing toolpaths, and accounting for machine capabilities and tolerances. Modern CAM software makes this process faster and more accurate than manual methods, but the principles remain the same.
As automation and AI advance, programming will become more intelligent—but the core task remains: create a sequence of instructions that produces parts right, efficiently, every time.
FAQ
What is the difference between G-code and M-code?
G-code controls geometric movements—tool paths, positioning, feed rates, and machining operations. M-code controls auxiliary machine functions—spindle start/stop, coolant flow, tool changes, and program flow. Both work together to execute a complete machining operation.
How do I choose the right tools for CNC programming?
Tool selection depends on material being machined, operation type (milling, turning, drilling), feature geometry, required surface finish, and machine spindle capabilities. Start with manufacturer recommendations for your material, then adjust based on tool life and surface finish results. Consider tool coatings (TiAlN for steel, AlCrN for stainless, PCD for aluminum) to extend tool life.
What are the benefits of computer-aided programming over manual programming?
Computer-aided programming is faster (code generated in minutes vs. hours), more accurate (eliminates manual calculation errors), and handles complex geometries that manual programming cannot. It also enables simulation to detect collisions and optimization to reduce cycle times. Manual programming remains useful for simple parts, quick edits, and understanding fundamentals.
How do tolerances affect CNC programming?
Tighter tolerances require more careful programming. The programmer must account for machine accuracy, tool deflection, thermal expansion, and tool wear. Finishing passes with lighter cuts, slower feeds, and careful toolpath control are often required. Tolerances also affect inspection requirements and may increase cycle time and cost.
What software is best for CNC programming?
The “best” software depends on your needs. Mastercam is widely used for general machining. SolidWorks CAM integrates seamlessly for SolidWorks users. Fusion 360 offers affordable CAD/CAM/CAE in one platform. CATIA and Siemens NX are high-end solutions for aerospace and automotive. The most important factor is programmer skill and experience with the chosen software.
