Introduction
Look closely at a piece of custom jewelry, a dental crown, or a detailed prototype, and you might notice something: the surfaces are smooth, the details crisp, the edges sharp. Chances are, it came from a resin 3D printer. Unlike the plastic filament printers found in many homes and schools, resin printers use liquid photopolymers and light to create parts with exceptional detail and surface finish. But how does this technology actually work? What makes it different? And when should you choose it over other 3D printing methods? This article answers these questions and helps you understand whether resin 3D printing is right for your next project.
What Is Resin 3D Printing?
Definition and Basic Concept
Resin 3D printing, also known as vat photopolymerization, is an additive manufacturing process that uses liquid photopolymer resin and light to create solid objects. The resin hardens—or cures—when exposed to specific wavelengths of light, typically ultraviolet (UV).
Two main technologies dominate resin printing:
- Stereolithography (SLA): Uses a UV laser to trace each layer, curing the resin point by point.
- Digital Light Processing (DLP): Uses a digital projector to flash entire layers at once, curing the entire cross-section simultaneously.
Both build parts layer by layer from a digital 3D model, but they achieve it differently. The result is the same: parts with smooth surfaces, fine details, and accuracy that filament printers struggle to match.
The Resin Printing Process Step by Step
Step 1: Design and Slice
Create a 3D model in CAD software or from a 3D scan. Slicing software cuts this model into thin layers—typically 25 to 100 micrometers thick. For comparison, a human hair is about 70 micrometers. These thin layers enable the incredible detail resin printing achieves.
Step 2: Prepare the Printer
Fill the resin vat with liquid photopolymer. The build platform lowers until it's just below the resin surface. Some printers use a release film on the vat bottom to help separate each cured layer.
Step 3: Cure the First Layer
The light source activates. In SLA, a laser traces the first layer's shape. In DLP, a projector flashes the entire layer image. Where light hits, resin solidifies. The first layer bonds to the build platform.
Step 4: Build Layers
The platform lifts (or lowers, depending on printer design) by one layer thickness. Fresh resin flows under the cured layer. The next layer cures, bonding to the previous one. This repeats until the object completes.
Step 5: Remove and Clean
Lift the platform from the vat. Peel the printed part free. Wash it in isopropyl alcohol or a specialized solvent to remove uncured resin. This step is critical—leftover liquid resin will continue curing over time and ruin surface quality.
Step 6: Post-Cure
Place the cleaned part in a UV curing station. Additional light exposure ensures complete polymerization. This final step develops full material properties—strength, stability, and durability.
Step 7: Finish (Optional)
Remove supports. Sand, polish, or paint as needed. Some applications need no further work—the as-printed surface is already excellent.
What Types of Resin Are Available?
Different resins offer different properties. Choosing the right one matters.
| Resin Type | Key Properties | Best Applications |
|---|---|---|
| Standard | Rigid, good detail, easy to print | General prototyping, models, figurines |
| High-Resolution | Extremely fine detail, smooth finish | Jewelry patterns, dental models, miniatures |
| Tough/Durable | Impact resistant, engineering properties | Functional prototypes, snap-fit parts |
| Flexible | Rubber-like elasticity | Gaskets, seals, soft-touch components |
| Castable | Burns clean with minimal ash | Investment casting patterns |
| Biocompatible | Safe for skin/tissue contact | Medical devices, dental appliances, surgical guides |
| High-Temperature | Withstands elevated temperatures | Molds, hot air applications |
| Clear/Transparent | Optical clarity | Light guides, fluidic devices, see-through models |
Standard Resins
Purpose: General-purpose applications requiring good strength and detail.
Properties: Rigid, easy to print, smooth finish. Good for most prototyping needs.
Limitations: Can be brittle. Not for functional parts under stress.
High-Resolution Resins
Purpose: Applications where every micron matters.
Properties: Exceptional detail capture. Surfaces smooth enough for jewelry masters.
Best for: Jewelry patterns, dental models, miniatures, master patterns for molding.
Flexible Resins
Purpose: Parts that need to bend, compress, or stretch.
Properties: Rubber-like elasticity. Returns to shape after deformation.
Best for: Gaskets, seals, ergonomic grips, wearable prototypes, soft robotics.
Castable Resins
Purpose: Creating patterns for investment casting.
Properties: Burns cleanly with minimal ash—typically under 0.5%. Captures fine details that transfer to the final metal piece.
Best for: Jewelry, dental copings, art castings, any metal part produced via lost-wax casting.
Biocompatible Resins
Purpose: Medical and healthcare applications.
Properties: Certified for skin contact or temporary tissue contact. Sterilizable via common methods.
Best for: Surgical guides, dental appliances, hearing aids, prosthetics, medical device prototypes.
What Are the Benefits of Resin 3D Printing?
Exceptional Detail and Surface Finish
Resin printing achieves layer thicknesses as low as 25 micrometers. Compare that to FDM's typical 100–300 micrometers. Thinner layers mean smoother surfaces—often ready to use without post-processing.
For jewelry, this means masters that capture every design detail. For dental, it means crowns and aligners that fit perfectly. For prototyping, it means parts that look and feel like injection-molded production pieces.

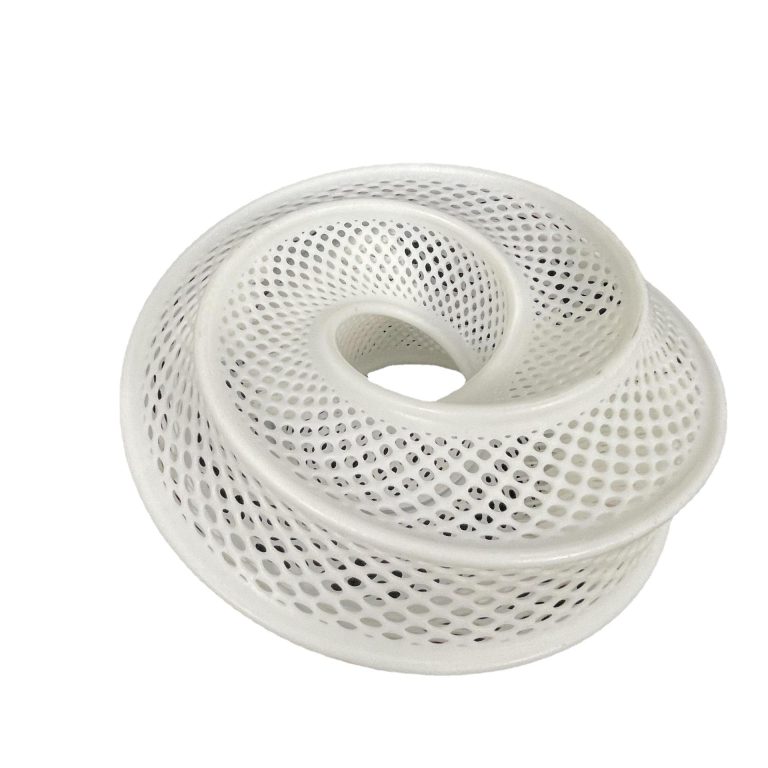

Complex Geometry Capabilities
Resin printing handles shapes that challenge other methods:
- Thin walls: Down to 0.2 mm or less
- Fine features: Details measured in tenths of millimeters
- Internal cavities: With proper drainage design
- Organic shapes: Flowing forms without visible layer lines
The liquid resin supports overhangs during printing, though steep angles may still need supports.
Material Variety
The range of available resins expands constantly. You can match material properties to application requirements:
- Rigid for structural prototypes
- Flexible for soft-touch parts
- Clear for light pipes
- Biocompatible for medical use
- High-temperature for functional testing
This variety makes resin printing suitable for applications from concept models to production-grade components.
Speed for Small Parts
DLP printers flash entire layers at once. For small, detailed parts, this can be faster than FDM's point-by-point extrusion. A jewelry master that might take hours on an FDM printer can print in minutes on a DLP system.
Cost-Effective for Short Runs
No tooling. No setup beyond digital files. A single part costs the same as the hundredth part—per-part price doesn't drop with volume, but it also doesn't require a minimum quantity. For prototypes and small batches, this is ideal.
Where Is Resin 3D Printing Used?
Prototyping
Designers and engineers use resin printing for rapid prototyping when appearance matters. A prototype that looks like the final product communicates design intent better than one with visible layer lines.
Consumer electronics prototypes, product enclosures, and ergonomic models benefit from resin's surface quality. Clients and stakeholders see—and feel—what the final product will be like.
Jewelry and Art
Jewelry makers were early adopters. Castable resins create master patterns for investment casting. The process:
- Design the piece in CAD
- Print in castable resin
- Invest in casting plaster
- Burn out the resin in a kiln
- Cast metal into the cavity
Result: metal pieces with details impossible to carve by hand. Design iterations happen in hours instead of days.
Artists create sculptures with organic forms and fine details. The smooth surface finish means less post-processing before display or casting.
Dental and Medical
Dentistry has embraced resin printing. Dental models for crowns, bridges, and aligners print with accuracy that captures every detail. Surgical guides ensure precise implant placement. Dental appliances like night guards print in biocompatible resins.
Medical applications extend to:
- Anatomical models for surgical planning
- Prosthetic sockets customized to patients
- Surgical instruments for specific procedures
- Medical device prototypes for testing
Biocompatible resins certified for skin contact or temporary tissue contact make these applications possible.
Engineering and Manufacturing
Resin printing creates:
- Investment casting patterns for metal parts
- Molds for urethane casting
- Jigs and fixtures for assembly
- Form/fit prototypes for design verification
Tough and durable resins withstand functional testing. Clear resins help visualize fluid flow or internal features.
Education
Schools use resin printers to teach design and manufacturing. Students see their digital creations become physical objects with professional-quality finish. The technology demystifies advanced manufacturing and inspires future engineers.
How Does Resin Compare to Other 3D Printing Methods?
| Factor | Resin (SLA/DLP) | FDM | SLS |
|---|---|---|---|
| Surface Finish | Excellent—smooth, no visible layers | Moderate—layer lines visible | Moderate—slightly rough, grainy |
| Detail | Exceptional—features down to 0.1 mm | Limited by nozzle diameter | Good—fine powder enables detail |
| Accuracy | High—±0.1–0.2 mm typical | Moderate—±0.2–0.5 mm | Good—±0.1–0.3 mm |
| Material Properties | Good—wide range, but can be brittle | Good—engineering thermoplastics available | Excellent—nylon is tough and durable |
| Support Structures | Required for overhangs | Required for overhangs | None—powder supports |
| Post-Processing | Cleaning, curing, support removal | Support removal, sometimes sanding | Powder removal, sometimes media blasting |
| Speed | Fast for small, detailed parts | Moderate | Moderate—multiple parts can nest |
| Cost per Part | Moderate to high | Low to moderate | Moderate to high (equipment expensive) |
| Best For | Detail, surface finish, small parts | Large parts, low cost, functional prototypes | Durable parts, complex geometries, production |
When to Choose Resin
- Detail matters: Jewelry, dental, miniatures, fine features
- Surface finish critical: Visual prototypes, master patterns
- Part size small: Resin vats limit build volume
- Aesthetics important: Consumer products, display models
- Transparency needed: Light guides, fluidics
When to Choose Other Methods
- Large parts needed: FDM or SLS handle bigger builds
- High strength required: SLS nylon or FDM engineering plastics
- Low cost critical: FDM for simple shapes
- Production volumes: Consider injection molding
How to Choose a Resin 3D Printing Service?
Quality of Prints
Look for providers with consistent quality. Ask:
- What resolution do they print at?
- Can they show samples of similar work?
- Do they have experience in your industry?
Check reviews. Request reference parts if possible. A reputable provider stands behind their work.
Turnaround Time
Resin printing is fast, but speed varies:
- Standard service: 3–7 days
- Expedited: 24–48 hours (premium cost)
- Rush: Same-day possible for small parts
Consider your timeline when selecting a provider.
Cost-Effectiveness
Compare quotes, but don't choose solely on price. Factors affecting cost:
- Part size and complexity: More resin, longer print time
- Resin type: Specialty resins cost more
- Quantity: Setup costs spread across multiple parts
- Post-processing: Cleaning, curing, finishing add cost
A slightly higher quote from a reliable provider often delivers better value than the cheapest option.
Post-Processing Capabilities
Printing is only half the story. Good providers offer:
- Cleaning: Thorough removal of uncured resin
- Curing: Proper UV exposure for full properties
- Support removal: Clean separation without damage
- Finishing: Sanding, polishing, painting as needed
Ask what's included. Some services deliver parts ready to use. Others provide raw prints requiring your own post-processing.
Material Selection
Ensure the provider offers the resin type your project needs. Not all services stock specialty resins like biocompatible or castable materials. Verify availability before ordering.
What Post-Processing Does Resin Printing Require?
Cleaning
Printed parts emerge covered in uncured liquid resin. Proper cleaning is essential:
- Immerse in isopropyl alcohol (typically 90%+)
- Agitate to dissolve residue
- Remove and allow to dry
- Repeat if needed for complex internal cavities
Some providers use ultrasonic cleaners for thorough removal. Incomplete cleaning leaves sticky surfaces that never fully cure.
Curing
After cleaning, parts need final UV exposure. Curing stations provide controlled light and sometimes heat. This step:
- Completes polymerization
- Develops full mechanical properties
- Stabilizes dimensions
Under-cured parts remain soft and may continue changing over time. Over-curing can cause brittleness.
Support Removal
Supports hold overhangs during printing. After printing, they must be removed:
- Snip or break away carefully
- Sand attachment points smooth
- Some soluble supports exist but are less common
Skill matters—aggressive removal can damage the part.
Finishing
Optional steps for specific requirements:
- Sanding: Smooth surfaces, remove support marks
- Polishing: Achieve glossy, transparent finish
- Painting: Add color, protect surface
- Coating: Apply clear coat for durability
Finishing transforms good prints into exceptional ones.
How Does Yigu Technology Approach Resin 3D Printing?
As a non-standard plastic and metal products custom supplier, Yigu Technology treats resin printing as a specialized tool for applications where detail and surface finish matter most.
Our Experience in Action
Jewelry client: A designer needed intricate masters for casting. Hand-carving wax would take days per piece and limit complexity. We printed castable resin patterns overnight. The foundry received patterns ready for investment casting. The designer now produces collections with detail impossible to carve by hand.
Medical device company: A startup developing a surgical instrument needed transparent prototypes to verify fluid paths. Traditional machining couldn't create the internal channels. We printed clear resin prototypes showing every passage. The client validated their design in days instead of weeks.
Product design firm: A client wanted presentation models that looked like production parts. FDM prototypes showed visible layer lines that distracted from design reviews. We printed SLA models with smooth surfaces and crisp edges. Stakeholders approved the design immediately.
Matching Process to Need
Our engineers evaluate each project:
- Does the application demand exceptional detail?
- Is surface finish critical?
- What material properties are required?
- What quantity and timeline?
If resin printing fits, we recommend it. If another method serves better, we say so. This honesty builds trust.
Material and Technology Range
We maintain capabilities across multiple resin technologies:
- SLA for precision and surface quality
- DLP for speed on smaller parts
- Large-format resin for bigger builds
- Specialty resins for medical, castable, and engineering applications
This range lets us match technology to application precisely.
Conclusion
Resin 3D printing delivers detail and surface finish that other additive methods cannot match. From jewelry masters that capture every design element to medical devices customized for individual patients, the technology enables applications where precision matters.
The benefits are clear:
- Exceptional resolution and smooth surfaces
- Wide material variety for different needs
- Complex geometry capabilities
- Fast turnaround for small parts
- Cost-effective for prototypes and short runs
But resin printing isn't for everything. Build volumes are limited. Parts can be brittle compared to engineering thermoplastics. Post-processing is required.
The key is matching the technology to the application. For detailed prototypes, visual models, jewelry, dental devices, and any project where surface finish matters more than raw strength, resin printing is often the best choice.
Understanding these strengths and limitations helps you make informed decisions. Whether you need a single prototype or a small production run, knowing what resin printing can—and cannot—do saves time, money, and frustration.
Frequently Asked Questions
Q1: What is the cost of resin 3D printing?
Costs vary by part size, complexity, and resin type. Typical ranges: small simple parts $50–$150, medium complex parts $150–$400, large or specialty parts $400–$1,000+. Always request quotes with detailed specifications.
Q2: How long does resin 3D printing take?
Print time depends on part size and height. Small parts: 1–4 hours. Medium parts: 4–12 hours. Large parts: 12–48 hours. Expedited services can deliver in 24–48 hours including post-processing.
Q3: Can I choose the type of resin for my project?
Yes. Reputable services offer multiple resin types. Select based on your requirements: standard for general use, high-resolution for detail, flexible for bendable parts, castable for jewelry patterns, biocompatible for medical applications.
Q4: How strong are resin 3D printed parts?
Strength varies by resin type. Standard resins are adequate for visual prototypes but can be brittle. Tough and durable resins approach engineering plastic properties. For functional parts, choose appropriate material and consider design for loading.
Q5: Is resin 3D printing safe?
With proper handling, yes. Liquid resin can irritate skin—wear gloves. Uncured resin requires proper disposal. Cured parts are inert and safe. Professional services handle all safety aspects. For home use, follow manufacturer safety guidelines.
Q6: Can resin prints be used outdoors?
Standard resins degrade in sunlight—UV exposure continues curing and can cause yellowing and embrittlement. Specialized UV-stable resins exist for outdoor use. Check material specifications for your application.
Q7: What file formats work for resin 3D printing?
STL is most common. OBJ, 3MF, and native CAD formats also work. Provide watertight models—no holes or reversed normals. Your service provider can advise on file preparation.
Contact Yigu Technology for Custom Manufacturing
Ready to explore resin 3D printing for your project? At Yigu Technology, we combine printing expertise with broader manufacturing capabilities. Our team helps you select the right resin, optimize designs for printability, and deliver quality parts on schedule.
Visit our website to see our capabilities. Contact us today for a free consultation and quote. Let's bring your detailed designs to life.
