Introduction
You have heard the term "3D printing." You may have seen videos of objects rising from a bed of powder or plastic. But what actually happens inside that machine? How does a digital file become a physical object?
The 3D printing additive manufacturing process is fundamentally different from traditional manufacturing. Instead of cutting away material from a solid block (subtractive) or pouring material into a mold (formative), additive manufacturing builds objects layer by layer. It adds material only where it is needed.
This difference unlocks new possibilities. Complex geometries become practical. Waste drops to near zero. Custom parts cost no more than standard ones. In this guide, we will walk through the entire process—from digital model to finished part.
What Is the Basic Principle of Additive Manufacturing?
The Four Key Steps
Every additive manufacturing process follows the same four-stage workflow.
| Stage | Description |
|---|---|
| Three-Dimensional Modeling | Create a digital 3D model using CAD software |
| Slice Processing | Software cuts the model into thin layers |
| Physical Transformation (Printing) | Printer builds the object layer by layer |
| Post-Processing | Clean, finish, and inspect the part |
Key fact: A typical 3D print uses layers 0.05–0.4 mm thick. A 10 cm part requires 250–2,000 layers.
How Is a 3D Model Created?
Three-Dimensional Modeling
The process starts with a digital model. This is the blueprint for the physical object.
Common CAD software:
- SolidWorks – Engineering and mechanical parts
- AutoCAD – Architecture and industrial design
- Blender – Organic shapes, art, animation
- Fusion 360 – Product design, prototyping
Key fact: The digital model must be watertight—a closed mesh with no holes. Slicing software cannot process open models.
What Is Slice Processing?
Cutting the Model into Layers
Once the 3D model is ready, slicing software converts it into instructions the printer can understand.
What slicing software does:
- Divides the model into horizontal layers
- Calculates the toolpath for each layer
- Generates support structures for overhangs
- Sets print parameters (temperature, speed, layer height)
Common slicing software:
- Cura – Popular for FDM printers
- Simplify3D – Advanced control for professionals
- PrusaSlicer – Optimized for Prusa printers
- Chitubox – For resin (SLA/DLP) printers
Key fact: Layer thickness affects both print quality and time. Thinner layers (0.05 mm) give smoother surfaces but take longer. Thicker layers (0.3 mm) print faster but show visible layer lines.
How Does the Printing Process Work?
Physical Transformation
The printer reads the sliced data and builds the object layer by layer. Different technologies use different methods.
Fused Deposition Modeling (FDM)
FDM is the most common 3D printing technology. It works like a hot glue gun.
| Step | Description |
|---|---|
| 1 | Thermoplastic filament is fed into an extruder |
| 2 | The extruder heats the filament above its melting point |
| 3 | Molten plastic is extruded through a nozzle |
| 4 | The nozzle moves in X and Y, depositing the first layer |
| 5 | The build platform lowers, and the next layer is deposited |
Common materials: PLA (biodegradable, easy to print), ABS (strong, heat resistant), PETG (strong, chemical resistant), TPU (flexible)
Best for: Large parts, functional prototypes, low-cost printing
Stereolithography (SLA)
SLA uses a laser to cure liquid resin.
| Step | Description |
|---|---|
| 1 | A vat is filled with liquid photopolymer resin |
| 2 | A laser traces the cross-section of the object on the resin surface |
| 3 | The resin cures where the laser hits |
| 4 | The build platform lowers, fresh resin covers the cured layer |
| 5 | The process repeats until the part is complete |
Common materials: Standard resins, tough resins, castable resins, high-temperature resins

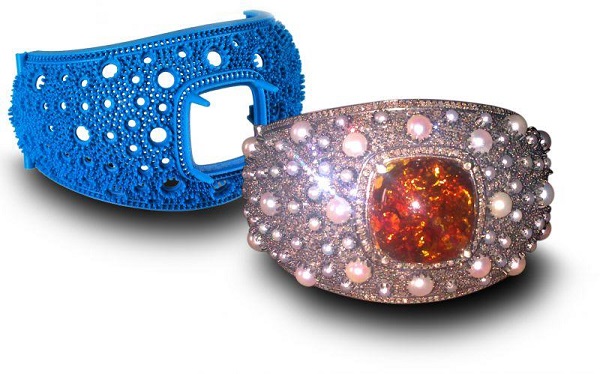

Best for: High-detail parts, smooth surfaces, jewelry, dental models
Selective Laser Sintering (SLS)
SLS uses a laser to fuse powder particles.
| Step | Description |
|---|---|
| 1 | A thin layer of powder is spread across the build platform |
| 2 | A laser scans the cross-section, sintering (fusing) the powder |
| 3 | The build platform lowers, a new powder layer is spread |
| 4 | Unsintered powder supports the part—no separate supports needed |
Common materials: Nylon (PA12), TPU, glass-filled nylon
Best for: Durable functional parts, complex geometries
What Is Post-Processing?
Finishing the Part
Parts rarely come off the printer ready to use. Post-processing adds the final touches.
| Process | Purpose |
|---|---|
| Support removal | Cut or dissolve structures that held overhangs |
| Sanding | Smooth layer lines |
| Polishing | Achieve glossy finish |
| Painting | Add color, protect surface |
| Heat treatment | Relieve stress, improve mechanical properties |
| Vapor smoothing | Dissolve surface layer for injection-molded finish |
Key fact: Post-processing can add 20–50 percent to the total part cost and lead time. Planning for it early is essential.
What Materials Can Be Used?
Additive manufacturing uses a wide range of materials.
| Category | Examples | Applications |
|---|---|---|
| Plastics | PLA, ABS, PETG, nylon, PC, PEEK | Prototypes, functional parts, tooling |

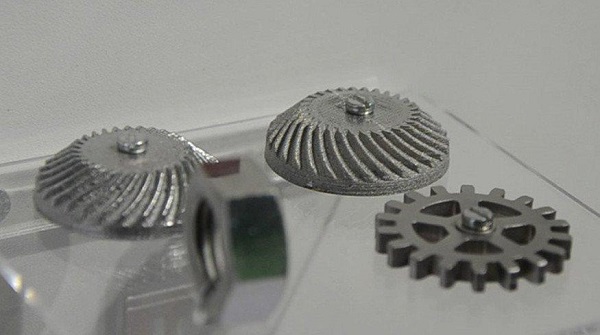

| Metals | Titanium, stainless steel, aluminum, Inconel | Aerospace, medical, industrial |
| Resins | Standard, tough, castable, high-temp | High-detail parts, jewelry, dental |
| Composites | Carbon fiber nylon, glass fiber nylon | Lightweight, stiff parts |
| Ceramics | Alumina, zirconia | High-temperature applications |
Key fact: Material selection is one of the most important decisions in additive manufacturing. The right material ensures the part meets mechanical, thermal, and chemical requirements.
What Are the Key Applications?
Manufacturing
Additive manufacturing is transforming how products are made.
Rapid Prototyping
A study by Wohlers Associates found that companies using 3D printing for prototyping reduced product development time by 30–50 percent.
Customized Parts
High-performance cars require custom engine components. 3D printing produces complex geometries that traditional methods cannot.
Low-Volume Manufacturing
For small production runs (1–500 units), 3D printing is often more cost-effective than injection molding or casting.
Medical
Personalized Prosthetics
Each amputee has unique anatomy. 3D printed prosthetics fit perfectly. The global market for 3D printed prosthetics is projected to reach $59.3 million by 2027.
Dental Models
Dentists use 3D printed models to plan implants, orthodontics, and restorations.
Bioprinting
Scientists are printing living tissues—skin, cartilage, and eventually organs. 3D printed skin is already used for burn patients.
Yigu Technology’s View
At Yigu Technology, we use additive manufacturing to produce custom plastic and metal parts. The technology gives us flexibility that traditional methods cannot match.
Case Study: Custom Prototype
A client needed a functional prototype for a new medical device. Traditional machining would have taken 4 weeks and cost $3,000. We printed the prototype in nylon using SLS in 3 days for $600. The client tested, iterated, and finalized the design in half the time.
Case Study: Low-Volume Production
A client needed 200 custom brackets for a specialized application. Injection molding would have required a $10,000 mold before the first part. We printed the brackets in carbon fiber nylon using SLS. Total cost: $4,000. The client received parts in one week.
Our Approach
We guide clients through the entire additive manufacturing process:
- Design review – Ensure models are watertight and optimized for printing
- Material selection – Match material properties to application
- Technology selection – Choose FDM, SLA, SLS, or metal printing
- Printing – Industrial printers with in-process monitoring
- Post-processing – Support removal, finishing, heat treatment
- Quality inspection – Verify dimensions and performance
Conclusion
The 3D printing additive manufacturing process is fundamentally different from traditional manufacturing. It builds objects layer by layer from digital models. It offers design freedom that subtractive methods cannot match. It reduces waste to near zero. It enables customization without added cost.
The process has four stages:
- Modeling – Create a digital 3D model
- Slicing – Cut the model into thin layers
- Printing – Build the object layer by layer
- Post-processing – Clean and finish the part
Different technologies—FDM, SLA, SLS, metal printing—serve different applications. Material selection is critical.
Additive manufacturing is not replacing all traditional methods. But for complex geometries, low volumes, and custom parts, it is often the best choice.
FAQ
What materials can be used in 3D printing additive manufacturing?
A wide variety. Plastics include PLA, ABS, nylon, PC, and PEEK. Metals include titanium, stainless steel, aluminum, and Inconel. Resins are used for high-detail SLA prints. Composites like carbon fiber nylon offer high stiffness. Ceramics are used for high-temperature applications.
Is 3D printing additive manufacturing suitable for large-scale production?
Currently, it is best for low to medium volumes (1–1,000 units) . For high-volume production (10,000+ units), traditional methods like injection molding are faster and cheaper per part. However, new high-speed technologies are emerging, and costs are declining.
How to ensure the quality of 3D printed products?
Quality depends on three factors:
- Print parameters – Layer thickness, temperature, speed must be optimized
- Material selection – Choose the right material for the application
- Post-processing – Heat treatment, machining, and finishing improve properties
- Inspection – Dimensional measurement, surface analysis, and mechanical testing verify quality
Professional services follow ISO quality standards and provide inspection reports.
